Overview

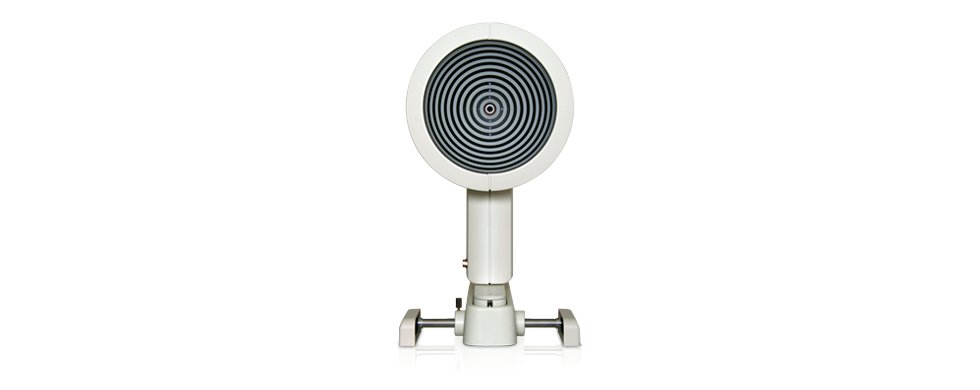

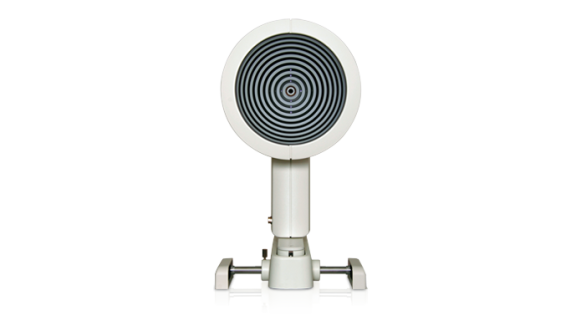

- The special feature of the Keratograph is the combination of keratometric and corneal topography measurement
- Extraordinarily high resolution of the cornea due to 22.000 measuring points
- Digital image transmission and automatic release guarantee top reproduction
- Intuitive and easily learnable application with Windows™-screen environment
- Non-contact measurement with a 3.15″ distance
- Network capable software
- Keratoconus detection and quantification based on several Indices
- Refractive compare display to control the progression of wearing Ortho-K-Lenses
- Contact lens fitting software with, real fluo image simulation, extensive pre-programmed CL database, editing function for your own line of lenses, customized, individual CL lens suggestion
- Pupillometry module optional
Features
Full Specifications
|
Measurement range:: |
0,118″ – 14,961″ (3 – 38 mm), 9-99 D |
|
Accuracy: |
+/- 0,1 D |
|
Reproducibility: |
+/- 0,1 D |
|
No. of rings: |
22 |
|
Working distance: |
3,15″ (80 mm) |
|
No. of test points: |
22.000 |
|
Dimensions H x D x W: |
16,535″ x 6,69″ x 10,236″ (42 x 17 x 26 cm) |
|
Weight (measuring unit): |
5,07 lb (2,3 kg) |
